product description

CN:PRF-PIG-0044-127-06-00

Weight: 1887gr/m

The RABDION GFRP Standard Floor Beam is a pultruded structural profile engineered for swine farrowing, nursery, and finishing flooring sub-structures. Fully certified to EN 13706 Grade E23, it delivers high load-bearing capacity and minimal deflection across extended spans in both shallow and deep pit environments.

Compatible with standard plastic slat panels and modular flooring systems, this profile provides total immunity to ammonia, manure acids, and washdown chemicals. Backed by 35+ years of proven field reliability across North America, Europe, and global markets, RABDION floor beams completely eliminate the rust, structural failure, and biosecurity risks of traditional steel or concrete supports.

key features

  1. EN 13706 E23 Performance Rating.
  2. Immunity to Severe Chemical & Waste Media.
  3. Biosecurity and Surface Hygiene.
  4. Extended Clear Spans and Shallow/Deep Pit Versatility.
  5. Thermal Comfort and Non-Conductive Safety.
  6. Universal Panel Compatibility.

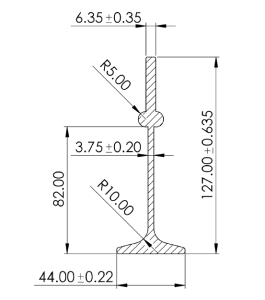

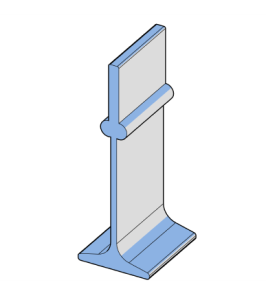

profile section

section geometry

PROPERTYNOMINALTOLERANCE +/-UNIT
Height127.000.635mm
Width44.000.220mm
Top Thickness6.350.350mm
Bottom3.750.200mm

section properties

PROPERTYVALUEUNIT
Second Moment of Area Ix40149.22mm^4
Second Moment of Area Iy1781805.84mm^4
Section Area949.41mm^2

load table

Span mmDeflection mmRecommended UDL kg/mMax UDL kg/sqm at spacing of 400 mm Max UDL kg/sqm at spacing of 600 mmMax UDL kg/sqm at spacing of 800 mm
150010750468820831175
2000133101938861486
2400161861163517291
30002094588261147
3500235836416291
