product description

CN:PRF-PIG-0044-076-06-00

Weight: 1560gr/m

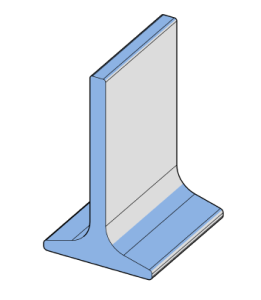

The RABDION GFRP Standard Floor Beam is a pultruded structural profile engineered for swine farrowing, nursery, and finishing flooring sub-structures. Fully certified to EN 13706 Grade E23, it delivers high load-bearing capacity and minimal deflection across extended spans in both shallow and deep pit environments.

Compatible with standard plastic slat panels and modular flooring systems, this profile provides total immunity to ammonia, manure acids, and washdown chemicals. Backed by 35+ years of proven field reliability across North America, Europe, and global markets, RABDION floor beams completely eliminate the rust, structural failure, and biosecurity risks of traditional steel or concrete supports.

key features

  1. EN 13706 E23 Performance Rating.
  2. Immunity to Severe Chemical & Waste Media.
  3. Biosecurity and Surface Hygiene.
  4. Extended Clear Spans and Shallow/Deep Pit Versatility.
  5. Thermal Comfort and Non-Conductive Safety.
  6. Universal Panel Compatibility.

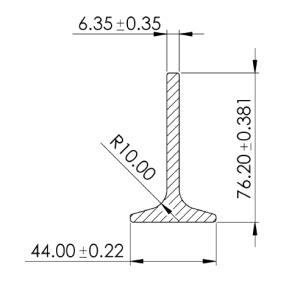

profile section

section geometry

PROPERTYNOMINALTOLERANCE +/-UNIT
Height76.200.381mm
Width44.000.220mm
Top Thickness6.350.350mm
Bottom

section properties

PROPERTYVALUEUNIT
Second Moment of Area Ix39108.30mm^4
Second Moment of Area Iy433203.19mm^4
Section Area745.63mm^2

load table

Span mmDeflection mmRecommended UDL kg/mMax UDL kg/sqm at spacing of 400 mm Max UDL kg/sqm at spacing of 600 mmMax UDL kg/sqm at spacing of 800 mm
1500101811131503ND
20001375466207ND
24001644276123ND
3000202314163ND
350023148839ND
